An Elevating High Top Van Roof Rack System
The Dropracks TVE has been specifically designed for use with taller vans and higher vehicles, making loading and unloading so much easier and no longer a barrier for carrying things. After Dropracks spent a lot of time customizing Droprack XLs to work on high sided vehicles they decided to make a serious product to help the taller van owners looking to load and unload on higher vehicles.

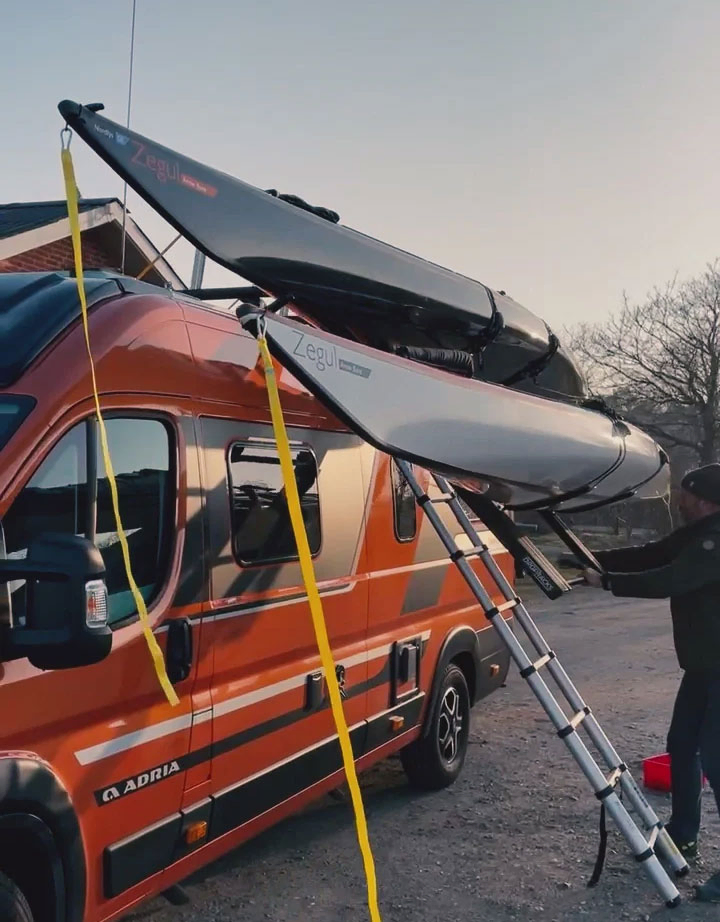

The TVE is perfect for campervan owners wanting to load kayaks, canoes, bikes and other such things on their roof. Using a cranking handle with a built in clutch, lowering things off your roof to a much more manageable loading height has never been easier. The clutch style system means that no matter where you stop in the raising or lower of your load it will remain safely in place. The Integrated lifting crank has 2 adjustable lengths the longer of them allow for easier cranking with heavy loads whilst the shorter makes it quicker and is ideal for lighter loads. When lowered the bars of the Dropracks TVE come diagonally down the side of the vehicle on an angle which makes getting to your carriers to unload much easier but they remain far enough away from your vehicle to ensure no contact.
The bars of the Dropracks TVE have a T-Track style slot in the top of them which allows them to take almost any carrier you require.
Dropracks are only compatible with vehicles using either flush mounted rails, fixing points or raised rails. The Dropracks TVS has to be paired with the appropriate mountings (Not Included With The Dropracks TVE). No Dropracks are not compatible with vehicles that require clamp under the door opening style fixings.
The Dropracks TVE is perfect for those looking to load on and off highsided taller vehicles and campervans, it has revolutionised loading & will make using roofracks so much easier!
Features
- Quick to raise and lower from a tall van
- Easy loading and unloading from three sides
- T-Track for attaching specific carriers like bikes, kayaks, roof boxes, rooftents etc
- Integrated lifting crank arm with adjustable lengths for heavy or light loads
- Rubber strips for added friction and protection of loaded gear
- Stainless steel click locks for quick departure
- Compact and closed design in driving position for a streamlined look
- Durable black anodized aluminium finish
- Designed and tested in Norway for harsh conditions
- Approved to international standards for roof racks

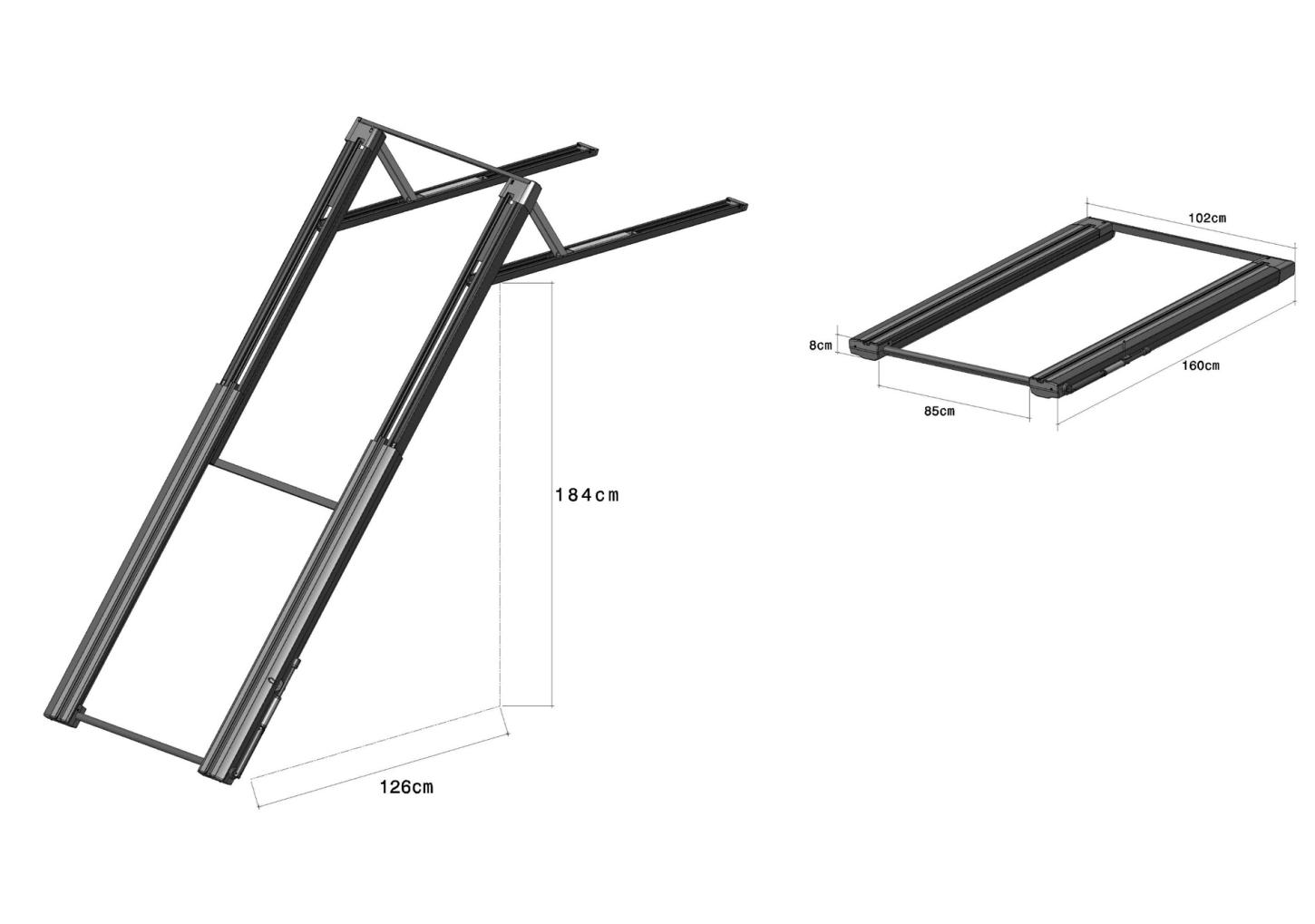

Specification
- Lifting Capacity: 80kg - 176lbs
- Static Capacity: 294kg - 650lbs
- Dynamic Capacity: 100kg, 220lbs
- Total Width: 160cm - 63"
- Load Surface Width: 129.5cm - 59"
- Drop Distance: 71cm - 31"
- Build Height: 7.9cm - 3.1"
