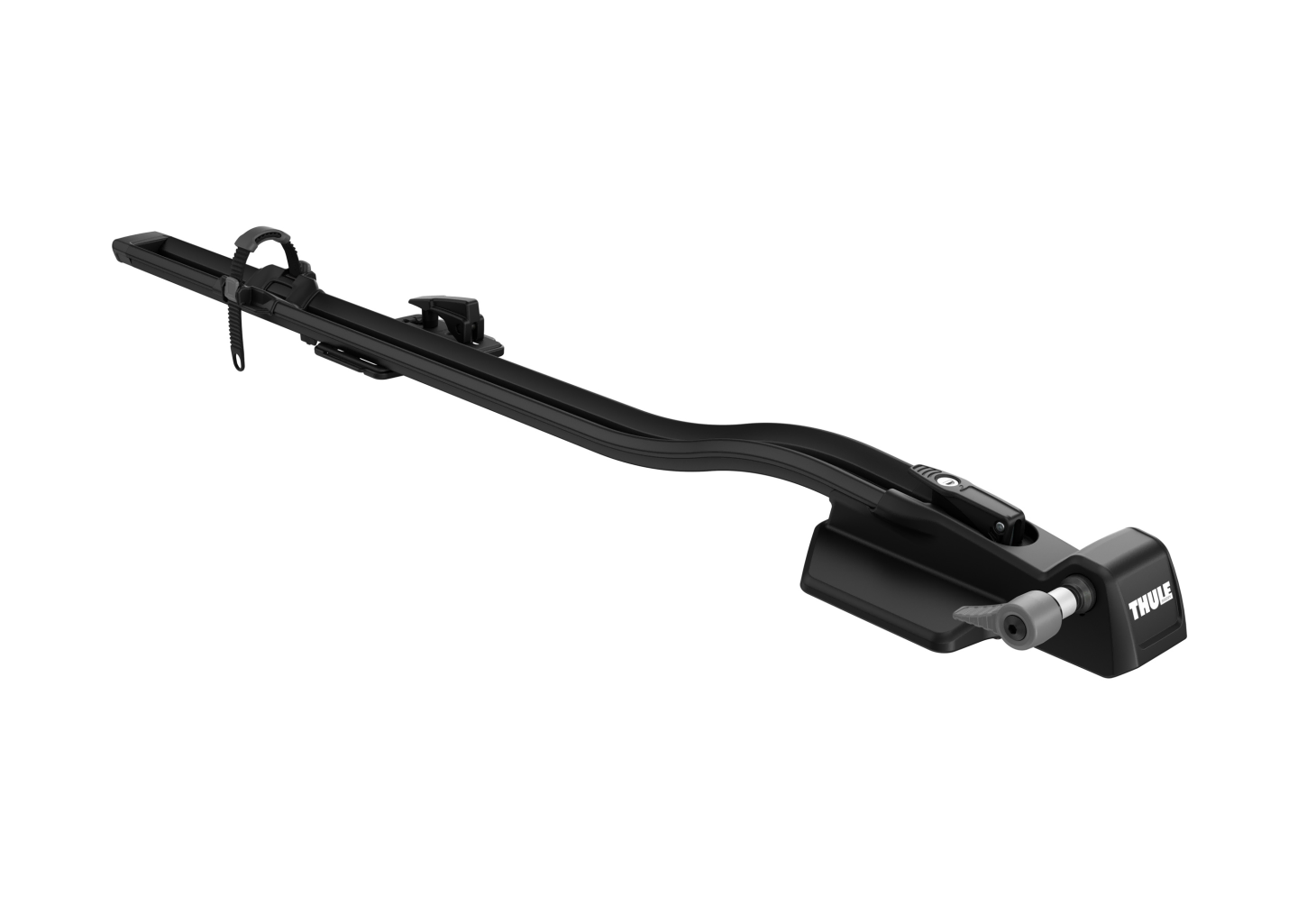

Thule FastRide Fork Mounted Bike Carrier
Thule FastRide 564

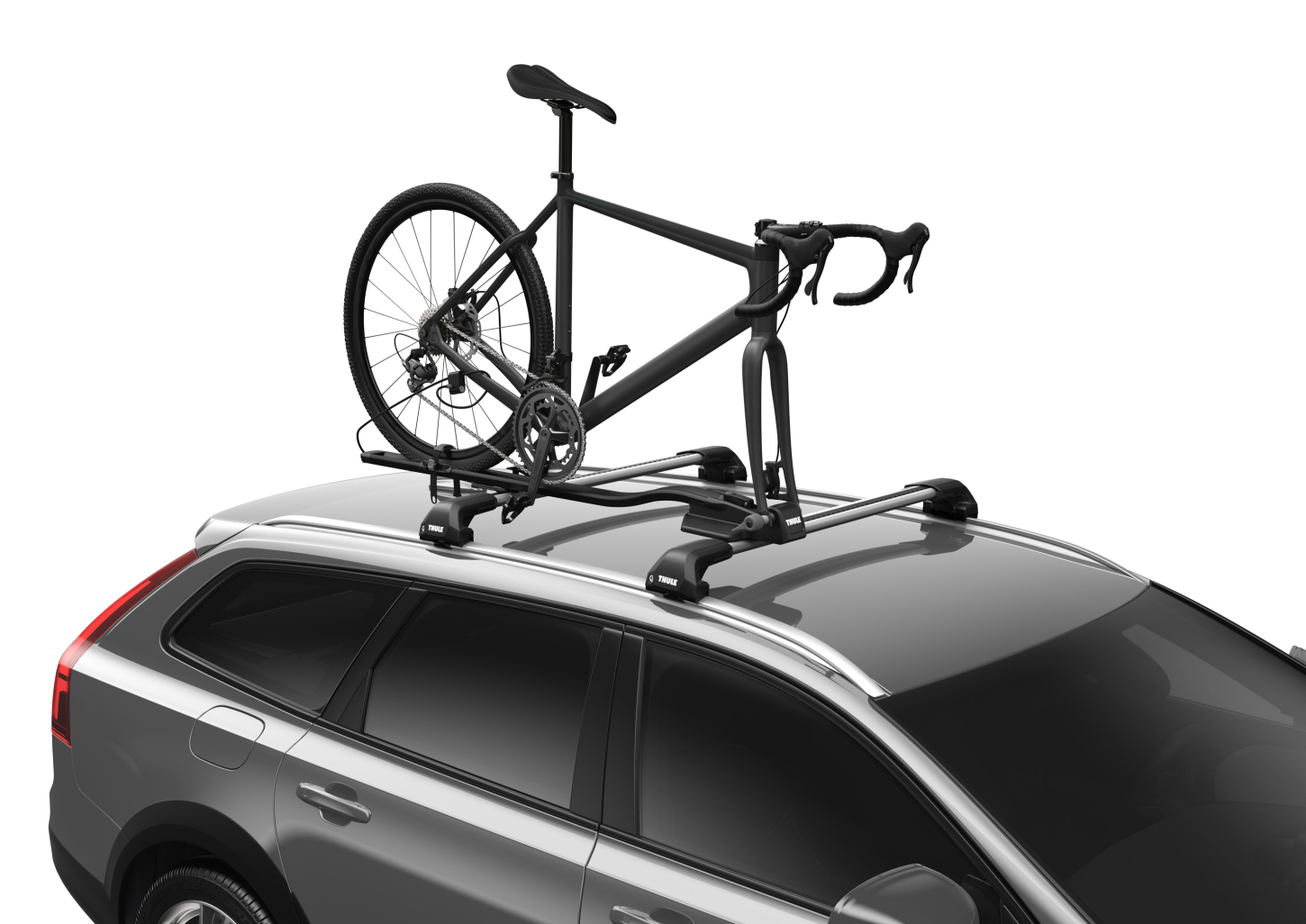

RoofRack Mounted Cycle Carrier which Secures the Front Fork
The Thule FastRide 564 easy to use cycle carrier with a sleek design perfect for use with Quick Release and Thru-Axle front forks with optional adapters. With clearance for Disk Brake Callipers the front fork clamp grips to a specific tension, its AcuTight Torque Limiter Knob clicking off when reached. The AcuTight fastener can be flipped to tighten from either side of the carrier, so you can mount your bike whichever side suits you.
The rear wheel of your bike is secured by an easy operation ratcheting strap, this comes with a rubberised sleeve to grip and protect your rims from damage.
Included locking points which lock the carrier to your roofrack, and a rear mounted cable lock which can be used to lock the rear wheel and frame of your bike to the carrier.
Coming with 20x20mm T-Tracks as standard the Thule FastRide 564 Easily Mounts to any Thule RoofRack with a T-Track, with optional adapters to fit 24x30mm T-Tracks (Thule T-Track Adapter 889-3) and to fit SquareBars (Thule FastRide & TopRide Around-The-Bar Adapter 8899)
Features
- Fits 9mm Quick Release Style Forks as Standard
- Fits 9-15mm Thru-Axle with Optional Adapter (Thule FastRide 9-15mm Axle Adapter Kit 5641)
- Fits 20 x 110mm Thru-Axle with Optional Adapter (Thule FastRide & TopRide Thru-Axle Adapter 20x110 mm 5681)
- Fork Clamp Allows Clearance for Disk Brakes

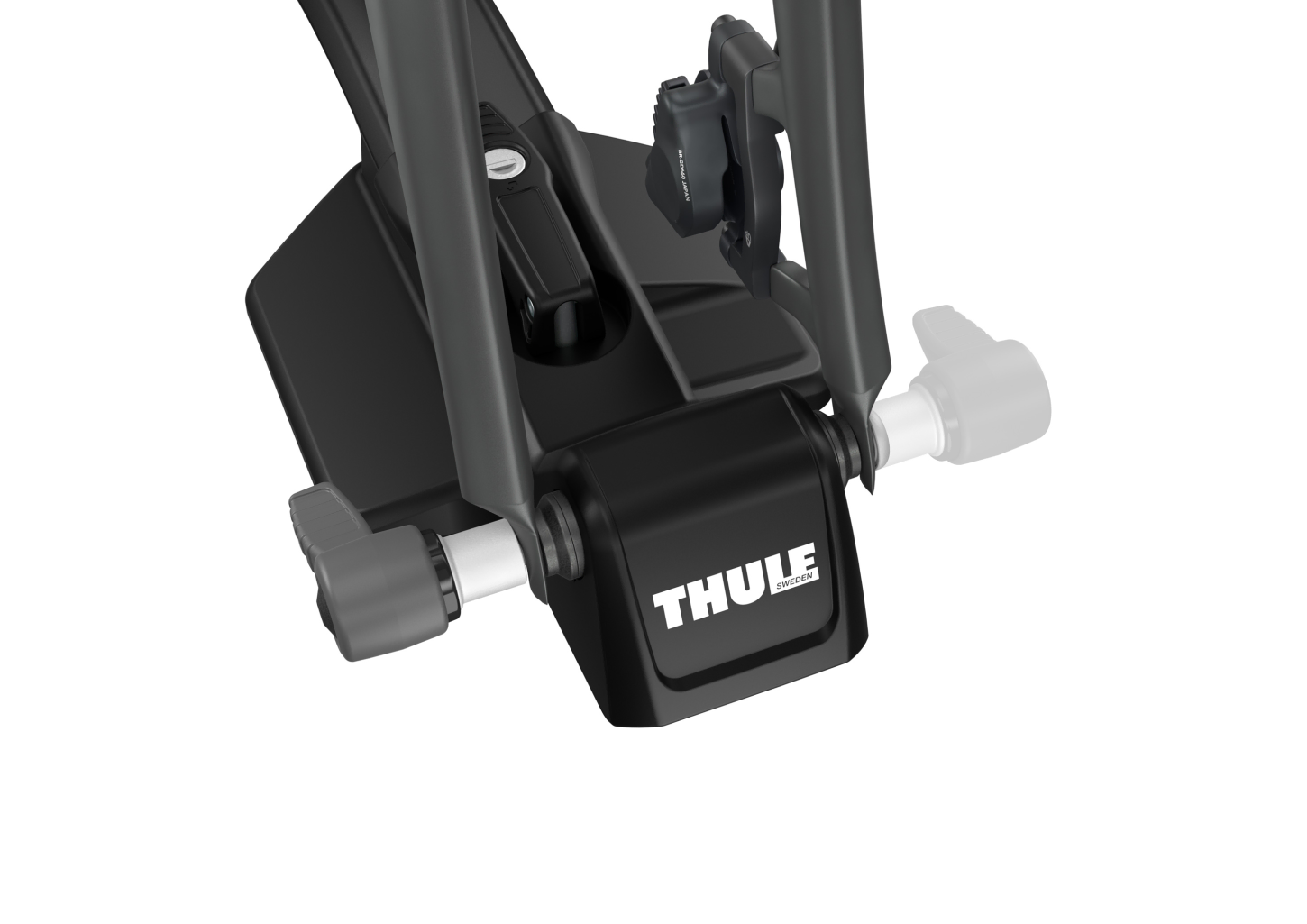

- Easy Mounting of Quick Release Forks, AcuTight Limiter Dial Clicks Off when Correct Tension is Reached
- Easy to Flip AcuTight Fastener for Mounting to Either Side of Your Vehicle
- Adjustable Rear Wheel Strap with Rubberised Rim Protection Sleeve

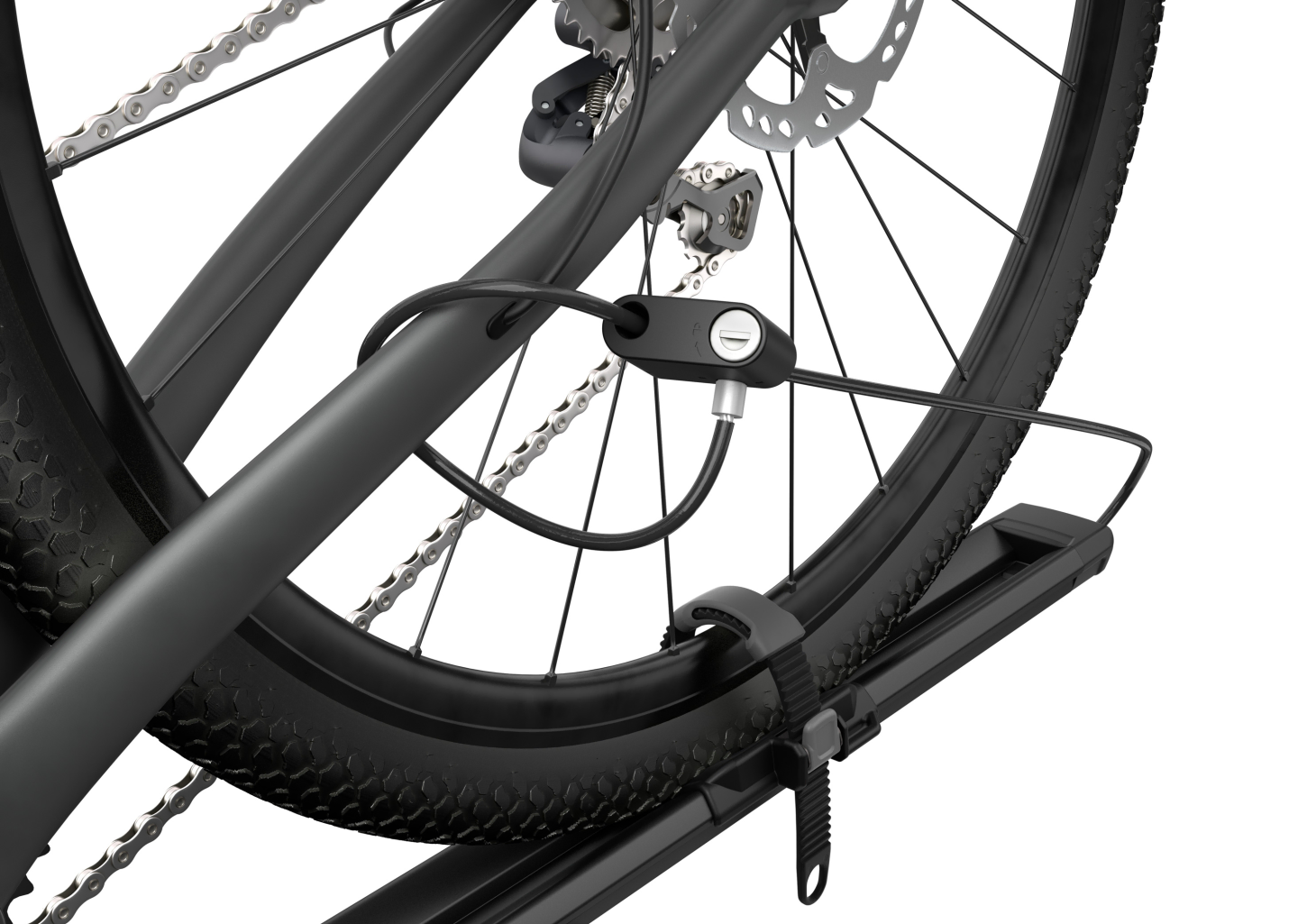

- Keyed Cable Lock to the Rear of the Carrier
- Locking of Bike to Carrier and Carrier to Roof Rack
- Fits Roof Racks with 20x20mm T-Tracks
- Fits Roof Racks with 24x30mm T-Tracks with Optional Adapter (Thule T-track Adapter 889-3)
- Fits Roof Rack With SquareBars with Optional Adapter (Thule FastRide & TopRide Around-the-bar Adapter 8899)
Specification
- Load Capacity (kg): 18
- Dimensions (cm): 135 x 22 x 9.2
- Weight (kg): 3.3
- Fits Round Frame Dimensions: Yes
- Fits Oval Frame Dimensions: Yes
- Maximum Tire Width (Inches): 3
- Maximum Wheel Diameter (Inches): 29
- Maximum Wheelbase (mm): 1250
- Thru-Axle Compatibility: Additional adapters required: (Thule 5641 9-15mm Thru-Axle Adapter)(Thule 5681 20x110mm FastRide & TopRide Thru-Axle Adapter)
- Carbon Frame Compatible: Yes
- Carbon Fork Dropout Compatible: Yes
- Fits Thule WingBar, SlideBar, ProBar with a 20x20mm T-Track: Yes
- Fits Thule SquareBar: Additional Adapter Required: (Thule 8899 FastRide & TopRide Around-The-Bar Adapter)
- Fits RoofBars With a 24x30mm T-Track: Additional Adapter Required: (Thule 889-3 T-Track Adapter)
- One Key System Compatible: Yes
- Model Number: 564
